NCM Milano Plus | Trekking E-Bike

$2,799.00 NZD
$2,799.00 NZD
Tax included.
Size
Colour

Introduction

Inspired by the Fashion Capital of Europe the NCM Milano + is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low top tube, makes the bike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 48V to deliver a high output power
  • over 768Wh capacity for a longer distance
  • reach up to 150 km (depending on the conditions)
  • easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones

Das-Kit 60Nm Motor

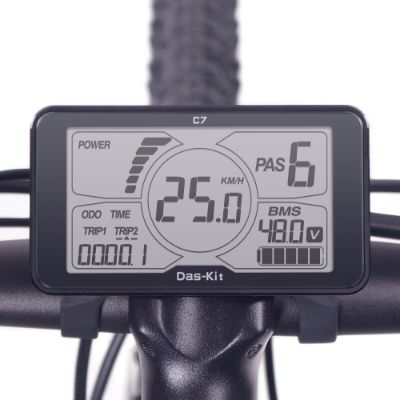

Das-Kit C7 Display

48V battery with USB

Schwalbe Tires

Specifications

  NCM Milano NCM Milano + NCM Milano Max
Motor Das-Kit X15 motor, 48V, 60Nm max speed 32 km/h Das-Kit X15 motor, 48V, 60Nm, max speed 32 km/h Bafang MAX Mid drive motor, 36V
Battery DEHAWK i5-4813H, 624Wh, 48v 13Ah, with USB Port DEHAWK i5-4816P, 768Wh, 48v 16Ah, Panasonic, with USB Port DEHAWK i5-3616P, 576Wh, 36v 16Ah, with USB Port
Display Das-Kit L7, LCD Display Das-Kit C7, LCD Display Befang MAX C966, LCD Display
Charger DC483DE 48V 3A DC483DE 48V 3A DC362DE 36V 2A
Frame Alu. 6061, 457/480MM Alu. 6061, 457/480MM Alu. 6061, 480MM
Forks SUNTOUR NEX 63mm SUNTOUR NEX 63mm ZOOM, 106
Braking System Tektro Mechanical Disc Tektro Hydraulic Disc

Fr: Tektro Mechanical Disc.

Rr: V Brake + Shimano Coaster-Brake
Gear Selector Shimano Altus M310, 7 speed Shimano Acere M360, 8 speed Shimano Acere M360, 8 speed
Front Derailleur N/A N/A N/A
Rear derailleur Shimano Altus M310, 7 speed Shimano Acere M360, 8 speed Shimano Acere M360, 8 speed
Saddle Selle Royal Gel Saddle, Brown Selle Royal Gel Saddle, Brown Selle Royal Gel Saddle, Brown
Tyre Shwalbe Marathon, 26×1.75 28×1.5  Shwalbe Marathon, 26×1.75 28×1.5 Shwalbe Marathon, 28×1.5
Handle Grips Velo, Brown Leather Velo, Brown Leather Velo, Brown Leather
Pedal Wellgo, B087 Wellgo, B087 Wellgo, B087
Range Upto 120 km Upto 150 km Upto 120 km
Weight 27 kg 27 kg 27 kg


Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Milano 26 160-188 N/A 108 45.7 87/98 58 181
Milano 28 170-198 N/A 101 48 93/104 60 182
Milano Max 28 170-198 N/A 101 48 93/104 60 182


Warranty

  • 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2-year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
